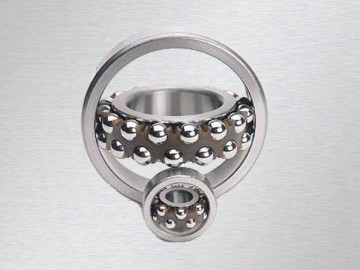

| 雙列角接觸球軸承 | |
|
|
|
| 外形尺寸 | 額定載荷(KN) | 極限轉速(r.p.m) | 軸承代號 | 安裝尺寸 |
重量 (Kg) |
|||||||||||
| 動載荷Cr | 靜載荷Cor |
脂 |
油 |
現用代號 | 原用代號 | |||||||||||
| damin | Damax | Dbmax | ramax | rbmax | ||||||||||||
| d | D | B | rmin | r1min | ||||||||||||
| r/min | r/min | |||||||||||||||
| 100 | 170 | 60.3 | 2.1 | 1.1 | 132 | 191 | 1800 | 2900 | 3220X1D/W33 | 4086920/W33 | 122 | 159 | 2 | 1 | 7.8 | |
| 105 | 190 | 79 | 2.1 | 1 | 173 | 240 | 1800 | 2900 | 3221X2DC | 156721/C2JG | 120 | 167 | 2 | 1 | 10.6 | |
| 110 | 170 | 56 | 2 | 1 | 120 | 154 | 1800 | 2900 | 3222X3P6 | 2E156822/SM | 122 | 152 | 2 | 1 | 4.9 | |
| 200 | 83 | 2.1 | 1.1 | 178 | 260 | 1800 | 2900 | 4222X3D | 86722/TG | 136 | 183 | 2 | 1 | 12 | ||
| 120 | 180 | 56 | 2 | 1 | 120 | 182 | 1800 | 2900 | 4024X2D | 86124H/W33 | 137 | 169 | 2 | 1 | 6 | |
| 180 | 60 | 2 | 1 | 110 | 183 | 1800 | 2900 | 4024D | 4086124 | 137 | 169 | 2 | 1 | 6.1 | ||
| 190 | 66 | 2 | 1 | 145 | 220 | 1800 | 2900 | 4024X3D | 4086124K | 140 | 177 | 2 | 1 | 7.5 | ||
| 190 | 66 | 2 | 1.1 | 145 | 220 | 1800 | 2900 | 4024X3DC | 156724 | 133 | 171 | 2 | 1 | 7.5 | ||
| 215 | 80 | 2.1 | 1.1 | 200 | 293 | 1800 | 2900 | 4024X3DC-1 | 156724K | 139 | 188 | 2 | 1 | 13.2 | ||
| 130 | 200 | 75 | 2 | 1 | 142 | 235 | 1700 | 2300 | 4026X2D | 4086726 | 150 | 187 | 2 | 1 | 9.1 | |
| 140 | 209.5 | 66 | 2 | 1 | 146 | 249 | 1700 | 2300 | 4028X3D | 86728H | 160 | 197 | 2 | 1 | 8.4 | |
| 209.5 | 66 | 2 | 1 | 146 | 249 | 1700 | 2300 | 156728/W33 | 153 | 191 | 2 | 1 | 8.4 | |||
| 210 | 69 | 2 | 1 | 146 | 249 | 1700 | 2300 | 4028D | 4086128 | 160 | 197 | 2 | 1 | 8.8 | ||
| 140 | 210 | 69 | 2 | 1 | 146 | 249 | 1700 | 2300 | 4028DC | 4156128/C9W33 | 153 | 191 | 2 | 1 | 8.8 | |
| 150 | 210 | 56 | 2 | 1 | 111 | 197 | 1600 | 2000 | 4030X3DC | 156730K | 162 | 192 | 2 | 1 | 6.3 | |
| 225 | 73 | 2.1 | 1.1 | 160 | 280 | 1600 | 2000 | 4030X2D | 86730 | 172 | 211 | 2 | 1 | 9.4 | ||
| 225 | 73 | 2.1 | 1.1 | 160 | 280 | 1600 | 2000 | 4030X2D/W33 | 86730/W33 | 172 | 211 | 2 | 1 | 9.4 | ||
| 225 | 73 | 2 | 1.1 | 160 | 280 | 1600 | 2000 | 4030X2DT/W33 | 172 | 211 | 2 | 1 | 9.4 | |||
| 225 | 75 | 2.1 | 1.1 | 160 | 280 | 1600 | 2000 | 4030D | 4086130 | 172 | 211 | 2 | 1 | 9.6 | ||
| 230 | 70 | 2.1 | 1.1 | 160 | 280 | 1600 | 2000 | 4030X3D | 86830 | 174 | 216 | 2 | 1 | 11.5 | ||
| 270 | 90 | 3 | 1.1 | 225 | 405 | 1600 | 2000 | 3230X2D/W33 | 189 | 240 | 2.5 | 1 | 23.3 | |||
| 160 | 215 | 56 | 2 | 1 | 97 | 166 | 1600 | 2000 | 4932X2DC | 156932 | 172 | 199 | 2 | 1 | 8.6 | |
| 239.8 | 76 | 2.1 | 1.1 | 191 | 340 | 1450 | 1850 | 4932X3DC | 156132K | 176 | 220 | 2 | 1 | 12 | ||
| 240 | 58 | 2.1 | 1.1 | 155 | 268 | 1450 | 1850 | 3032X2D | 3086132KH | 184 | 226 | 2 | 1 | 9.7 | ||
| 240 | 76 | 2.1 | 1.1 | 190 | 340 | 1450 | 1850 | 4032X2DC | 156132 | 176 | 220 | 2 | 1 | 13.5 | ||
| 240 | 80 | 2.1 | 1.1 | 190 | 340 | 1450 | 1850 | 4032D | 4086132 | 185 | 228 | 2 | 1 | 12 | ||
| 249.5 | 84 | 2.1 | 1.1 | 210 | 385 | 1450 | 1850 | 4032X3DC | 156832/W33 | 178 | 224 | 2 | 1 | 15 | ||
| 170 | 230 | 56 | 2 | 1 | 105 | 162 | 1450 | 1850 | 4934X3DC | 156734H | 183 | 212 | 2 | 1 | 7 | |
| 259.5 | 84 | 2 | 1 | 208 | 385 | 1300 | 1700 | 4034X3D | 4086734 | 197 | 242 | 2 | 1 | 15 | ||
| 260 | 84 | 2 | 1 | 208 | 385 | 1300 | 1700 | 4034X2DC | 156134 | 188 | 234 | 2 | 1 | 15 | ||
| 170 | 260 | 84 | 2.1 | 1.1 | 215 | 400 | 1300 | 1700 | 4034X2D | 156134/W33 | 188 | 234 | 2 | 1 | 15 | |
| 260 | 90 | 2.1 | 1.1 | 208 | 385 | 1300 | 1700 | 4034D | 4086134 | 197 | 242 | 2 | 1 | 15.5 | ||
| 180 | 250 | 70 | 2 | 1 | 166 | 320 | 1450 | 1850 | 4936X3DC | 156936/W33 | 193 | 231 | 2 | 1 | 9.2 | |
| 259.5 | 60 | 2 | 1 | 134 | 269 | 1250 | 1600 | 4936X3D-1 | 86736HK | 207 | 239 | 2 | 1 | 11 | ||
| 259.5 | 66 | 2.1 | 1.1 | 180 | 340 | 1250 | 1600 | 4936X3D/W33 | 86736 | 204 | 244 | 2 | 1 | 11 | ||
| 259.5 | 66 | 2 | 1 | 180 | 340 | 1250 | 1600 | 4936X2DC | 156736/W33 | 196 | 237 | 2 | 1 | 11 | ||
| 259.5 | 80 | 2.1 | 1.1 | 180 | 340 | 1250 | 1600 | 4036X3DC | 156836 | 196 | 237 | 2 | 1 | 14.5 | ||
| 280 | 92 | 2.1 | 1.1 | 237 | 450 | 1150 | 1500 | 4036X3DC-1 | 156136 | 202 | 271 | 2 | 1 | 19.7 | ||
| 280 | 92 | 2.1 | 1.1 | 237 | 450 | 1150 | 1500 | 4036X2DT/W33 | 211 | 244 | 2 | 1 | 19.7 | |||
| 280 | 100 | 2.1 | 1.1 | 237 | 450 | 1150 | 1500 | 4036D | 4086136 | 211 | 262 | 2 | 1 | 24 | ||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
